From the Ground Up II: Sky Glow and Near-Ground Artificial Light Propagation in Flagstaff, Arizona

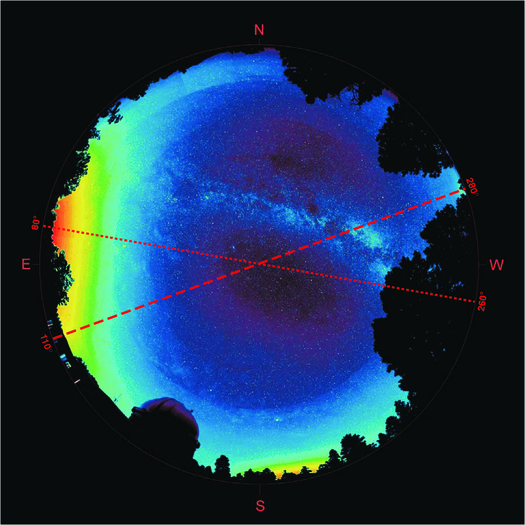

The panoramic sky brightness at the US Naval Observatory Flagstaff Station was measured 2004 September 16 between 0714 and 0730 UT (0014 and 0030 MST) using the National Park Service (NPS) camera system and procedures described by Duriscoe et al. (2007). The sky brightness values were calibrated using 148 Hipparcos stars with known Johnson V values extracted from the same images from which the sky brightness measures are extracted. Extinction was measured as 0.154 ± 0.002 mag airmass^-1. The mosaic image is presented in Figure 1.

Zoom In Zoom Out Reset image size

Sky brightness predictions were produced beginning with the Flagstaff light output data from GU1, combined with position information from the Flagstaff GIS database. These data included 6310 individual sources representing commercial, industrial, institutional (municipal, schools), roadway, multifamily residential, and sports lighting, as well as approximately 16,000 residences broken down into a 25 × 20 rectangular grid of points where each point included the light of all residences within each grid cell. Information used for each light source included total flux in lumens, fraction emitted directly upward, and position (latitude, longitude). An additional estimate of the lighting for Bellemont, Arizona was added to the GU1 database (5.2 Mlm, 5% direct uplight), located approximately 11 km at azimuth 300° from the observing site. These light sources serve as input to a program implementing Garstang's (1991) light propagation model that produces the predicted V-band sky brightness as a function of zenith angle at a specified azimuth. The Flagstaff light sources used in the model are shown in Figure 2.

Zoom In Zoom Out Reset image size

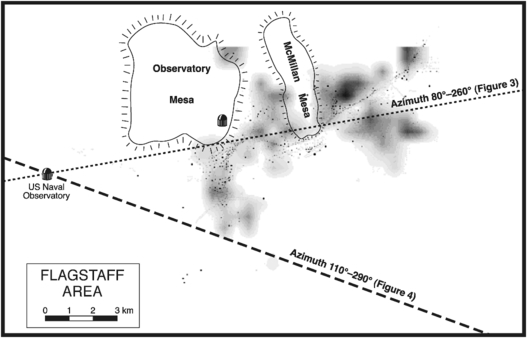

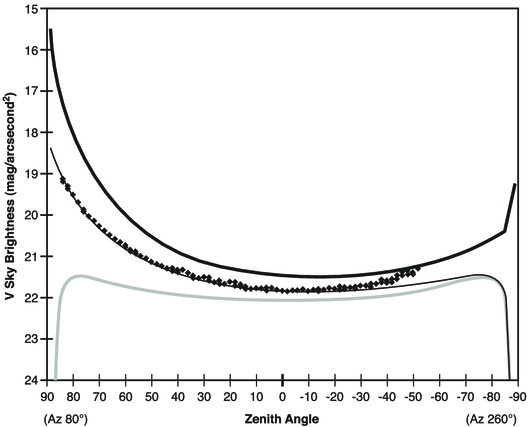

Sky brightness measures from the two azimuths indicated in Figure 1 and Figure 2 were extracted from the observations and compared to models for these azimuths, with results shown in Figures 3 and 4. These azimuths were chosen as they offered the clearest view toward the horizon in the direction of Flagstaff, working around trees located near the observation site. The 110°–290° azimuth offers the additional advantage of a clear western horizon.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The heavy solid lines in Figures 3 and 4 are Garstang models using the total light outputs, uplight fraction, and locations from GU1, supplemented with estimated data for Bellemont, Arizona, as described. The average ground albedo is 0.15, while the parameter K, describing the ratio of aerosol to molecular scattering, is set to 0.31 as determined from the measured extinction coefficient (cf. eq. [6] of Garstang 1991). This model shows a predicted brightness much greater than that observed, from 0.49–0.52 mag too bright at the zenith to 0.85–0.88 mag too bright at zenith angle 45° toward Flagstaff, with increasing divergence at greater zenith angles.

An apparent anomaly is the lack of a turnover in sky brightness toward the western horizon (Figure 4). This effect is likely due to automobile headlights that are directed almost straight toward the observatory from a several-mile section of the eastbound lanes of Interstate 40, which is not accounted for in the lighting database. That automobile headlights can make a significant contribution is clearly visible in time-lapse images taken with a modified NPS camera using a fish-eye lens.

The standard Garstang model, using as input light flux the "ground-up" outputs measured in GU1, clearly predicts a much brighter sky than that measured. In the following section we explore a neglected factor in Garstang's models that could account for this difference.

The lumen outputs of GU1 represent mean lamp lumens escaping from light fixtures (which they term "effective lumens"), split into downward- and upward-directed components. Other than accounting for simple Lambertian reflection of the downward component from a horizontal ground surface, previous work has not differentiated, or has scarcely differentiated, between these "effective lumen" values and the values escaping upward into the atmosphere to produce sky glow (Garstang 1986, 1989; Cinzano 2000). In a real environment, with not only light sources but structures, vegetation, and terrain that interact with the light after it exits fixtures, accurate prediction of the amount of light escaping into the atmosphere to cause sky glow requires detailed information on the angular distribution of the rays exiting the lighting fixtures; the geometric positions, orientations, and reflective characteristics of any surfaces or objects upon which the light is incident; and the propagative characteristics of the atmosphere as a function of position and altitude.

Workers in this field, beginning with Garstang (1986, 1989, 1991) have treated the latter, principally radiative transfer portion of this problem, including molecular and aerosol scattering and absorption, provisions for absorptive (haze) layers, differing altitudes of light sources (cities) and observation points, Earth curvature, and simple large-scale blocking by terrain features (mountains) between the light source and point of observation. Issues including the angular distribution of emergent light rays, the reflectivity of the ground and other surfaces, and the geometric characteristics of the built and vegetated environment have been less thoroughly treated. All workers beginning with Garstang (1986) have simplified this enormously complex problem.

Garstang assumed an upward-directed angular light distribution that is a composite of a Lambertian distribution arising from light reflected from a horizontal ground surface combined with a ψ⁴ component (ψ measured from the zenith and truncated at the horizon), normalized to a total of 10% of the total light flux in his "standard model," arising from light emitted directly upward from incompletely shielded lighting fixtures. He then generally applied a (scalar) figure of 15% for ground albedo, based on the idea that lights are located predominantly over paved surfaces, and on figures from the engineering literature showing that worn asphalt reflects between 12% and 14% of incident light while worn or dirty concrete reflects between 16% and 18%.

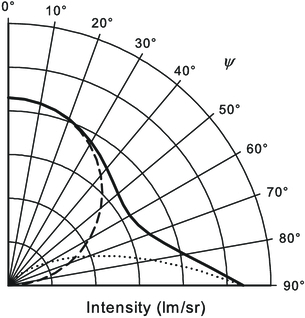

This composite angular distribution (Figure 5), when used in Garstang's atmospheric propagation models, is found to give results in reasonable agreement with available measurements, though critical parameters of the model are determined by essentially the same measurements. Other authors have continued to use this or slightly modified but similar relations (Cinzano 2000), and also find reasonable agreement with measurement.

Zoom In Zoom Out Reset image size

But Garstang's model makes three assumptions that may not accurately reflect most real outdoor lighting environments. The first assumption is that all downward-directed lighting, no matter the direction relative to nadir, is undiminished by any atmospheric scattering or absorption: he assumed no atmosphere between the light fixtures and the ground. The second assumption was that the ground near the light sources was everywhere flat and horizontal: he assumed that locally the Earth is perfectly smooth. As a consequence of this assumption, he implicitly makes a third assumption, that all rays reflected from the ground or emitted from fixtures directly upward propagate into the atmosphere, unimpeded by any further interaction with surfaces.

The first assumption seems reasonably robust (particularly in light of the discussion below), since light fixtures in general direct the majority of their output not further than about 60° to 70° from nadir in order to bring the light to the ground before excessive dilution by the inverse square law, thus providing a useful illumination level at the ground. (There are, of course, notorious exceptions.) Such light rays will reach the ground, in general, within two to three mounting heights of the light fixture, and atmospheric effects over such distances can be realistically neglected. Light rays exiting fixtures closer to (but still below) the horizontal, though they would eventually strike the ground on a "smooth Earth," in most real environments would be more likely to strike a structure or vegetation before suffering substantial diminution due to atmospheric effects, an effect discussed further below. Neglecting the scattering and absorption of these light rays will lead to an underestimate of the sky brightness visible to those observers who are located relatively nearby to the fixtures and observing upward with lines of site crossing these rays; the consequence for observers located at even moderate distances (more than a few hundred meters or so) from the light sources is likely to be negligible, due to the near-ground blocking.

But regarding the second, smooth Earth assumption: light rays striking surfaces that are not horizontal leads to an effect that effectively reduces the average albedo, independently of the actual average reflectivity of the surfaces, and alters the angular distribution of the rays escaping into the atmosphere. For a flat horizontal surface, as assumed by Garstang, if the average reflectivity is 15%, then 15% of the flux striking this surface will be reflected back upward and into the sky. But if a portion of the light exiting the fixture strikes a surface oriented perpendicular to the ground (such as the side of a building), then, assuming the surface is Lambertian, only 50% of the reflected light will be directed upward; the remaining 50% will suffer at least another reflection before being directed upward, greatly diminishing its intensity. Compounding this effect, the same structures or vegetation block, to an even greater degree, high zenith angle light paths from the ground to the atmosphere, and to a lesser extent block especially near-horizontal upward paths from fixtures located at some distance above the ground. In heavily built or vegetated environments, this related effect leads to a further substantial reduction in the effective albedo, and most heavily affects rays directed close to the horizontal.

These interactions with the near-ground environment likewise require a reconsideration of Garstang's third assumption, that the angular distribution of light rays entering the atmosphere is described by the Lambertian plus ψ⁴ angular distribution of rays emitted directly upward from fixtures. Garstang (1986), in describing his reasoning for the ψ⁴ component, admits that the choice is entirely arbitrary, that he used it because it has what he views as the required characteristics of zero emissions directly upward and a rapid increase toward the horizon. He further states "These properties seem to be true for most street lights and for at least some other forms of outdoor lighting." While this reasoning seems appropriate when considering luminaires in isolation, the structure of the environment surrounding the luminaires drastically modifies this distribution of light rays before they ultimately propagate into the atmosphere. Indeed, an individual fixture that is visible from all upward angles from the zenith to the horizon, if poorly shielded, will have dramatically increased intensity toward the horizon. But, in fact, the natural and the built environment conspire to block the visibility of most fixtures as viewing angles approach the horizon. This is apparent when one considers the view of a city from some altitude overhead, such as in an airplane, where thousands of lights are visible. But the majority of fixtures become blocked from view by objects in the near-ground environment when viewed from near the horizontal, generally leaving only those nearby visible.

Garstang (1989, p. 322) as well as Cinzano (2000) and Cinzano & Diaz Castro (2000) recognized this problem to a degree. Cinzano also investigated two additional upward angular intensity distribution functions, but these functions are either little different from Garstang's "standard model" or unsupported by any rationale (the "constant intensity" model). Both exhibit strong emission toward the horizon. Falchi & Cinzano (2000) investigated the light output of Italian cities as a function of population, and found evidence that light output per capita tends to decrease for the larger cities. They hypothesized that this effect might be due to a higher concentration of persons per unit area in large cities, and that such densely populated areas may have fewer street lights than lower density areas. This effect, however, may be illustrating the above-mentioned near-ground blocking effect, expected to be dramatic in heavily built areas.

Garstang (1986) indicates that the light output of extended areas surrounding urban centers, developed at low intensity, can be neglected when predicting light outputs contributing to sky glow. Berry (1976), in describing sky brightness measures made within southern Ontario cities, suggests that the light from distant parts of the cities is attenuated more than that originating near the observation point in the inner city, but does not indicate the source of this attenuation. Both of these effects may be hinting at the generally large amount of blocking by vegetation.

Cinzano & Diaz Castro (2000) show that light pollution, assuming the angular distribution function from Garstang (1986), when viewed from some distance from the light pollution source, is much more heavily influenced by light emissions at low angles above the horizontal than by emissions at higher angles. They find that the flux emitted between the horizon and 10° above the horizon has an effect on the zenith sky brightness at a remote site equal to all of the flux emitted between 10° above the horizon and the zenith. It is therefore critical to have more knowledge of the actual amounts of light escaping from cities at angles near the horizontal, information which was not available in the study by Cinzano et al. (2000). The analyses presented here indicate that the upward intensity distribution function assumed by Garstang, and other similar functions heavily weighted toward the horizon, are not likely to represent the actual upward light distribution in most cities.

We examine the nature and magnitude of near-ground interactions by two methods. The first method develops several specific built environments and explores their effect on the propagation of light from specific light fixtures. The second method is an analytic approach that assumes a standard Garstang intensity distribution originating at the ground/light sources but modified by an extinction factor like that applied to model the extinction of starlight produced by the atmosphere, but instead here applying to interaction of light rays with discrete obscuring objects located near the ground.

3.2.1. Interaction of Light with Built Environments

Using the lighting calculation software package AGI32 (ver. 1.96, Lighting Analysts, Inc.), we explored how several built environments affected the total amount and angular distribution of light propagating upward. This program propagates light emerging from light fixtures with defined candlepower distributions through a perfectly transparent atmosphere and traces its interaction with surfaces whose positions, orientations, and reflectances are defined by the user. It assumes Lambertian reflections for all surfaces. The performance of the program was verified by placing a fully shielded fixture (no direct uplight) over a plane with reflectance of 0.15, a smooth Earth model. The intensity of light striking the inside of a nonreflective hemisphere centered at the ground under this fixture was then measured. The program closely reproduced the expected Lambertian distribution and integrated flux determined by the reflectivity of the ground surface (Fig. 6).

Zoom In Zoom Out Reset image size

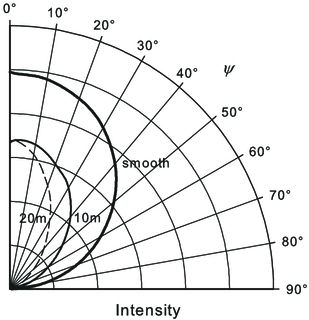

Further simulations placed both a fully shielded (0% uplight) and an unshielded light fixture (10% uplight, angular distribution; Fig. 5) on 8 m poles within a rectangular array of buildings, either 10 m or 20 m in height.. This we called the "city" model. Figure 6 shows the effective angular intensity distribution for upward-directed and reflected light originating with the shielded fixture, as an example, while Table 1 summarizes the overall flux changes as well as the high- and low-angle changes for all models investigated in this section. The split between high and low angles at 67.5° from the zenith is arbitrary, and reflects the AGI32 setup, which measured intensity at 5° increments, starting at 2.5° degrees above the horizon. Compared to the smooth Earth model, the emergent flux for the shielded fixture is dramatically reduced, to 51% where buildings are 10 m high and 29% in the 20 m city, with reduction between 67.5°–90° even more severe at just 25% and 7%. For the unshielded fixture, the total upward flux is reduced to 65% and 36% of that in the smooth Earth model in the 10 m and 20 m building environments, respectively. Here the reduction in the high-angle flux is somewhat higher than in the lower angles, in contrast to the fully shielded models.

Two models were evaluated to investigate the effect of mounting poorly shielded fixtures on the side of a building with an overhanging roof eave, such as a porch light on a home or a typical "wall pack" on the side of a commercial or industrial building. Each of these fixtures was evaluated in an environment with no structures (smooth Earth) as well as with a 3 m wall directly behind the fixture and with a 1 m overhanging soffit. The fixtures were positioned 2 m over the ground for all models. Here, total uplight is reduced by a much smaller fraction than in the above-described simulations, by just 9% for the porch light fixture and only 7% for the wall pack. Table 1 summarizes the results.

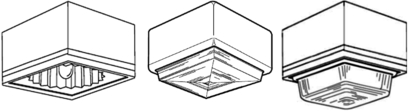

A special case of blocking, especially important due to the large amounts of light commonly involved, is the service station canopy. The effect on the upward emission of light was evaluated using three fixture types typically used on canopies. Again, the effective uplight reduction was calculated using two models for each fixture, one with and one without a canopy. Examples of the fixtures evaluated are shown in Figure 7, and the flux reductions are in Table 1.

Zoom In Zoom Out Reset image size

The upward flux from these canopy-mounted fixtures is reduced to between one-half and two-thirds of that produced in the smooth Earth environment.

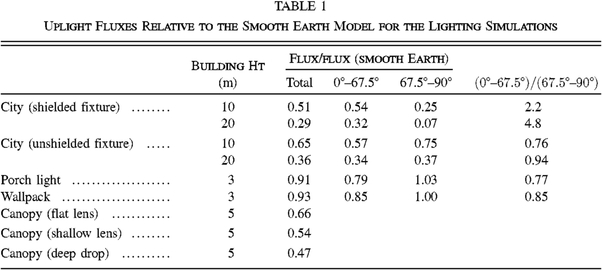

Little weight should be attached to the precise figures deduced from the models in this section, as they are sensitive to the particular fixtures and characteristics of the modeled environment used. Though we feel these are typical, substantial variations are expected in the real environment. We emphasize here only the general magnitude of the effects and the tendency in some common environments for the reductions at high zenith angles to be substantially greater than at low zenith angles.

3.2.2. Near-Ground "Extinction"

Modeling of the near-ground environment using specific descriptions of buildings and vegetation is much too complex and requires too much information for accurate results, in all but the simplest of applications. We move here to a more general approach that can be applied globally, if approximately, to either entire cities or at least large areasor categories of lighting within cities. Recognizing that the likelihood of light rays interacting with objects near the ground is directly related to the distance these rays must travel through the near-ground environment, we modify Garstang's (upward) angular distribution relation with an "extinction" term. This extinction, or "blocking," is produced not by the atmosphere as in classic atmospheric extinction, but by discrete natural and artificial objects, such as vegetation and buildings. The intensity (in lumen sr^-1) directed at a given angle ψ relative to the zenith is described by Garstang (1986) as

where G is the scalar reflectivity of the ground and F is the proportion of emergent flux emitted directly from fixtures above the horizontal. Including a "near-ground" extinction factor modifies this relation to

where E_b is the "blocking" extinction, in magnitudes, at the zenith. (We neglect the difference in height between the ground and the light sources, assuming a single value for E_b applied to all rays). While this relation has the desired property of increased blocking toward the horizon, it may go too far, in that intensity in all cases goes to zero at the horizon. While we desire a relation that decreases the intensity toward the horizon compared to Garstang's approach, we expect that at least most cities do not disappear when viewed from the horizon. To account for the patchiness of blocking caused by the discrete rather than continuous nature of the obscuring objects within the near-ground environment, we include an additional factor that effectively allows an "unblocked" fraction, β, of the flux to suffer no extinction:

In place of the somewhat arcane system of magnitudes favored by astronomers, the coefficient E_b can be expressed in terms of the percentage coverage B (the fraction of the ground that would be blocked from direct overhead view by the objects in this obscuring layer), recognizing the relation (1 - B) = 10^{-0.4E_b}

The needed blocking factor could be estimated from aerial images by measuring that portion of the ground obscured by vegetation and buildings.

We note that this approach assumes that the objects producing this near-ground blocking extinction are purely absorptive; since in general the reflectivity of objects is relatively low, we consider this a useful approximation. Furthermore, we are assuming that the absorption is strictly proportional to path length through the near-ground layer and independent of azimuth. If the objects in the obscuring layer have a preferred shape/orientation (such as trees with a larger vertical extent than horizontal), the obscuration will show a different dependence on zenith angle than the sec(ψ) assumed here. Further, real azimuthal variations in the blocking extinction and unblocked fraction are expected in complex city environments, which are likely to lead to sometimes considerable azimuthal dependence of sky glow. Figure 8 shows I_ge with various values for the zenith extinction, while Table 2 shows the effective diminution in the albedo (reduction in integrated upward flux) as compared to the unmodified Garstang model (which we note is equivalent to β = E_b = 0 in eq. 2).

Zoom In Zoom Out Reset image size

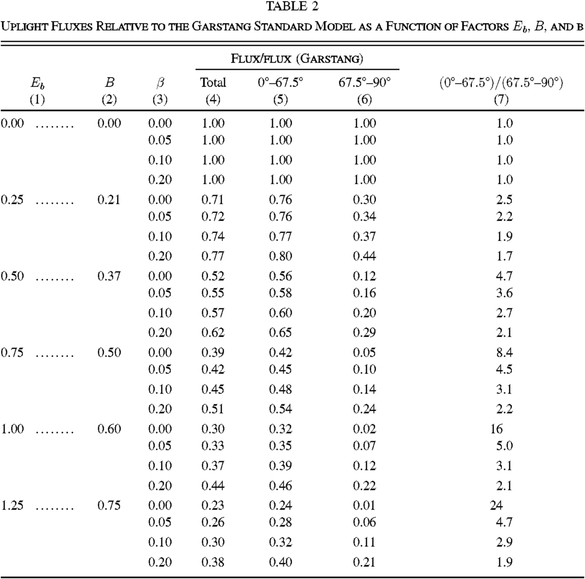

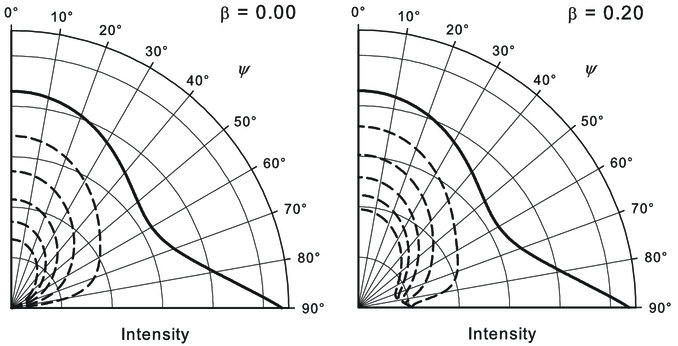

As E_b increases from 0.0 to 1.25 (see Table 2), the effective albedo is reduced to less than 40% of the value of Garstang's model for β = 0.20, and to less than 25% for β = 0.0. But the amount of reduction is increasingly more severe for the high-angle rays (defined here as those between 67.5° and 90° from zenith; Table 2, columns [5] and [6]). Column (7) in Table 2 indicates the factor by which the low-angle flux reduction exceeds that of the high angle. These values show that the light emitted upward but near the horizontal direction is reduced substantially more than that at higher angles, from ∼2× at E_b = 0.25 to a factor of 2–25 for E_b = 1.25, with the more severe reductions as β approaches zero. The significance of this disproportionate reduction of flux directed near the horizon will be discussed further below.

3.2.3. Effective Uplight Amount and Distribution Function
